I thought I should show the finished gate insert that I was cutting since I sent photos of it in progress. I finished installing it at around 10 pm last night. My Wife and I wanted to have a buffer to keep our four dachshunds from running out the front door and off the porch when we opened it.


#23

Life is always better on the other side of the door


#24

Awesome! What is this cut out of? Is the entire gate cut on the Maslow?


#25

The center panel is cut on the Maslow. The rest is a standard PVC gate kit for PVC fencing that I picked up at the local Home Depot. I got the idea from multiple sources.

The PVC sheet was suggested in the forums Outdoor Sign for Coffee/Bicycle Shop which led me to looking at ideas for a gate.
Once I saw the products here http://www.islandcreekdesigns.com/coastal-porch-railing-panels I knew I had to try making a custom design myself.

I purchased the outline from https://www.etsy.com/shop/RoyalPixels
I may be handy, but I don’t think of myself as artistic and at a price of $3.40cn which worked out to $3.44us for me it was absolutely worth the money.

I did the CAD/CAM in Fusion 360, free for users like me, which if you can get past the extreme learning curve, is totally worth using for more complicated projects. They now have a Maslow g-code post processor that I got from here https://forums.autodesk.com/t5/hsm-post-processor-ideas/a-fusion-360-post-processor-for-maslow-cnc/idi-p/7796167 It seems to work well, but this is the only time I have used it.

The PVC material at the local Home Depot is only available in 1/2 inch sheets. The original slats that the gate is designed for are 7/8 inch thick. this led me to a two layer design that allowed for easy painting of the outline. I made the cutout in a full 1/2 inch thick sheet and then I made the other sheet with a 1/8 in recess all the way around the edge to fill the back, you can see this in my earlier picture. I painted the face that would be in the middle grey to make the image easily visible. I sandwiched the 2 layers of material into the gate kit the same way the slats would have been inserted. The gate kit was designed with a full size fence panel in mind so the weight difference of the hollow PVC slats to the solid PVC insert was not a problem.

Notes on Fusion 360 free: Read the section under STARTUP: for home and hobby use which is most of us.
https://www.autodesk.com/company/legal-notices-trademarks/terms-of-service-autodesk360-web-services/autodesk-web-services-entitlements
and then the download link is here:


#26

so true :laughing:


#27

I love the build. Any chance you could put together a parts list? I just ordered my Maslow and have been looking for the best way to build it. Your build looks like it might do the trick.


#28

What exactly is the purpose of the IoT relay? I’m not following.


#29

Programmatic control of the router, i.e. turn it on and off with gcode.

Bar has some liability concerns about this, but it’s a pretty standard CNC controller feature. Otoh, people not being careful paid my bills for many years so pay attention to the interaction between sharp spinny cutting bits and your skin and underlying body structures to avoid being an anatomy lesson


#30

I really like the handled connectors your using, can you tell me where you got them and what they are called?


#31

Nice project, came out great. Quick question though.

In one your pics you show the relay, and unless im mistaken, you have a 110 AC fan connected to the always ON output of the relay by just poking the wires into the socket???


#32

uh, yeah dude WTF is up with that?!

yikes!

remember, if you need 1 fire extinguisher, GET 2!

cheers,


#33

Project of the Week / Community Gardener for July 25, 2018
#34

You are correct it is a very bad idea. It was a short term test and has already been moved to a proper connection. I hoped no one would notice the shoddy wiring on the fan. Love the reference to the IT CROWD.


#35

Its how you adjust the speed of the fan right? just wiggle the wire a little


#36

That show rocked! Heard Moss was even considered to be the new Dr. Who! before they went with who they did.

Hope you or someone else could answer a question for me. I want do a relay to turn my router on and off as well, but couldn’t find one of the ones you did. Looking at one of these, as I gather the Router pulls 11 Amps max, but i am never sure how to read the specs.

it says 40 Amps 24 - 380 VAC. Im assuming that 40 Amps is at 24 VAC, so that would be around 10 Amps at 110 VAC? Then it says 3500 Watts, and according to Ohm’s law thats 31 Amps? So more then enough for this application, right?


#38

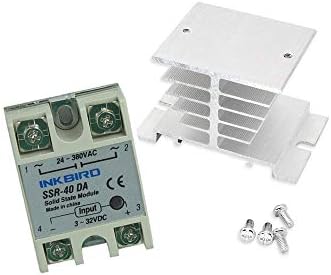

40A SSR SOLID STATE RELAY for temperature controller
Specifications:
Load Voltage: 24-380VAC = max voltage of motor being switched
Load Current: 40A = max current of motor being switched. only needs to be 20% greater then max amps of motor.
Input Voltage: DC 3-32V = max voltage used to switch the relay


#39

Thanks, the bit i don’t get though, the Voltage is a range, and the amps is a specific number. 40 Amps at 24 volts is ALOT less then 40 Amps at 380 Volts? Or am I misunderstanding the way Amps work? No electrician.

Or does this mean 40 Amps at 24 volts and 40 Amps at 380 Volts or anywhere inbetween???

Excuse the ignorance, but a question un-asked is a question never answered. :slight_smile:


#40

Amps is current and what leads to heat…

If you for example have 120 volts on a cable and run 12 amps through it, it’s essentially the same amount of heat created as running 240 volts at the same 12 amps. (assuming the cable is rated to carry the voltage ranges)

Wattage is Volts x Amps so in the example above, you would be sending twice the wattage at 240 volts vs. 120 volts. Wattage is the real measure of “power” i.e. a 1000 watt heater is warmer than a 500 watt heater.

Wires are typically sized for the amps. So if you think about it, sending 380 volts at 40 amps = 15.2kW if you try to send the same 15.2kW at 24 volts you would need 600+ amps (this would require very thick cable and generate a good amount of heat). Increasing the volts is how they are able to send a large amount of watts over a relatively small cable (low amps).

Hope that helps.


#41

I didnt see a wattage rating in that link. maybe a different product?
To add to what @paulp said, Volts are volume, like turning the water faucet on all the way (380v) or letting it trickle (24v)
Amperage is like the pressure that pushes and/or pulls the volume. too much pressure, stuff breaks.

Yes


#42

Commonthings posted in another thread:

“The top beam is attached using a carriage bolt, modified square washer and adjustable handle - in this case a Kipp 06601-5A51 but many will work.”

McMaster Carr carries handles like this also.
