Should be fixed now. I’ve done a lot of changes lately and had missed that one.
Thanks for letting me know.
1 Like
Thank you!
I’ve been testing out KrabCam, seems quite good so far but one thing I noticed straight up is the saving gcode window, would be nice to have the system save as window which allows to select a desination and shows all your previous files. This is useful when you have many similar files you want to bunch together which share a similar file name. Your current save window doesnt show a desination window show previous files so its very hard to remember what the similar files were called from a week ago.
Thanks for your input!
Unfortunately I haven’t found a way to do this…due to browser security. (Guess it would be bad if javascript-applications had direct access to your filesystem
Depending on browser, there might be some way to get around this by changing the browser settings, but I would be careful.
More about this here.
I might have missed something though…any suggestion is appreciated.
-Marius
1 Like
Hi Marius.
Beeing a NOOB+ just testing. You state ‘gen code from SVG’.
But when I use a dxf file it looks like it can generate code. Is that correct ?
I’m looking for some way to make my ‘slot car track’ with my Maslow. So haveing closed path is not easy as I want to make singelpase with a 0.75 mm endmill to engrave the racepath.
Br. KimK
Hi, yes, KrabzCAM supports reading and generating gcode for dxf-files as well.
I guess you would use the engrave(FOLLOW_PATH) operation type for your track…
Best regards
Marius
Thx Marius. I found out. La igjen en beskjed på FB Messenger. Kim K, Stavanger
6 Likes
Has anyone tried the Relief Rough and Relief Follow with the maslow. Some 3D and Relief work would be fun.
I’m aware that the sled will need to ride on the material. I have an idea for that…angle iron and some plastic furniture sliders, basically extending the sled.
I’m really struggling with Krabzcam, using Google Chrome on Windows 10, and finding basic operations hard to perform, and using the manual. I’m trying to make a simple sign, a 4 digit number inside a rounded corner box, and made an svg file in Vectric VCarve. I’d like to v-pocket the numbers and profile cut the outside of the box, possibly with a chamfer around the edge . That’s about a 5 minute job in VCarve but I want to be able to recommend krabzcam to beginners and point them towards directions in another very low budget router’s forum.
I did figure out how to zoom the window and position the design within it, and how to move “grab” the design and put it in the lower left corner. I’m unable to figure out how to select the numbers (box select gives me a lower left corner but no apparent way to actually draw a box around just the numbers. None of the usual right click operations are available, nor can I create a box for selection by left clicking and dragging the mouse. When opening the vpocket operation it’s rather difficult to change parameters, I want to use a feed rate of 4000 and a plunge of 2000 (unfortunately this isn’t a maslow), the 4000 was easy to change but the plunge wanted to stay stuck at 800. Using a ctl-Z (normally that’s an undo) does some really weird stuff, looks like it’s drawing circular toolpaths all over the design.
I understand you may not follow the normal WinDoze conventions, but just can’t seem to figure out how to do this simple task. I need to get this project done and will do it in VCD, but I’ve got some similar projects piled up. Please help
1 Like
Hi, hope I can give some useful input…
Regarding box-select:
When box-selecting, the sequence is the following:
- Type ‘b’
- Move mouse cursor to corner of what you want to select
- Press and hold left mouse button
- Move mouse cursor to opposite corner (you should now see a selection box of blue dotted lines)
- Release left mouse button
The selection box does not have to surround the entire element. It just need to ‘touch’ it.
PS. Caps-lock needs to be off.
As stated in the manual, by default box-select will toggle between selected and unselected state
, so that what is selected becomes unselected and vice versa.
To force ‘select only’, hold ‘Shift’. To force ‘unselect only’, hold ‘Ctrl’.
You can also use ‘circle select’ (press ‘c’ instead of ‘b’). Check manual for details.
Regarding changing parameters:
Try double-clicking on the number (e.g. 800), and then type 2000 + enter.
The increment/decrement buttons in Chrome seems to behave strange. Will look into it.
Undo is not supported I’m afraid…
I made a short video with displayed keystrokes based on your description.
You can watch it here.
Hope this is helpful.
-Marius
2 Likes
Hi, In Linux, using either LibreCad (v2.20a, DXF) or Inkscape (v1.2, SVG) to create a simple line drawing, KrabzCAM (web, FireFox 102.13.0esr 64-bit) always offers “Warning: SVG contained ignored invalid paths.” and only 42 bytes of G-Code are created with no paths or cuts. The manual doesn’t mention this warning, and it seems more an error, as no working code is ever made and the message appears for both DXF and SVG files. I’ve tried grouping/not grouping, breaking/bursting,objects to path, saving as inkscape svg, plain svg, and optimized svg from InkScape-all fail with the same warning when I load the file into KrabzCAM. The web offers no suggestions that I can find.
Any suggestions?
Thanks you for reading this and for writing KrabzCAM.
1 Like
Hi, I’m not sure what the exact problem is.
Could you please post an svg sample file?
-Marius
Hi,

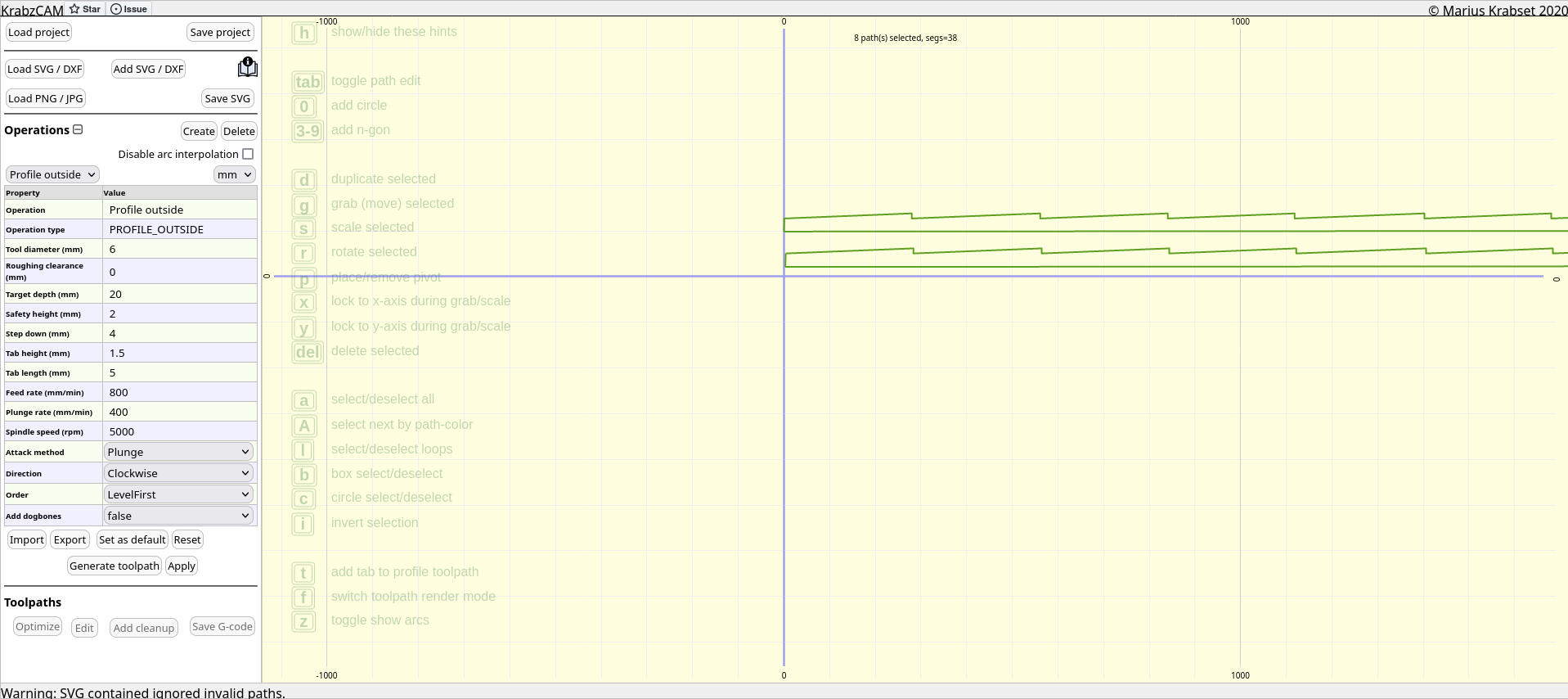

Please find below, in a total of three posts, a screenshot of the KrabzCAM web page after loading the SVG (the warning is in the lower left corner, the “8 paths selected” message is at the top center), the 42 bytes of G-Code made from that SVG, a screenshot of the LibreCAD DXF, the contents of the DXF file (a long file), a screenshot of the InkScape SVG made from the DXF, and finally the contents of the SVG file.
I hope this helps.
The G-Code made from the SVG:
g21
g90
g17
g40
m3 s5000
g0 z3
m5
m30
2nd Image:
Original LibreCAD DXF
The DXF file contents:
